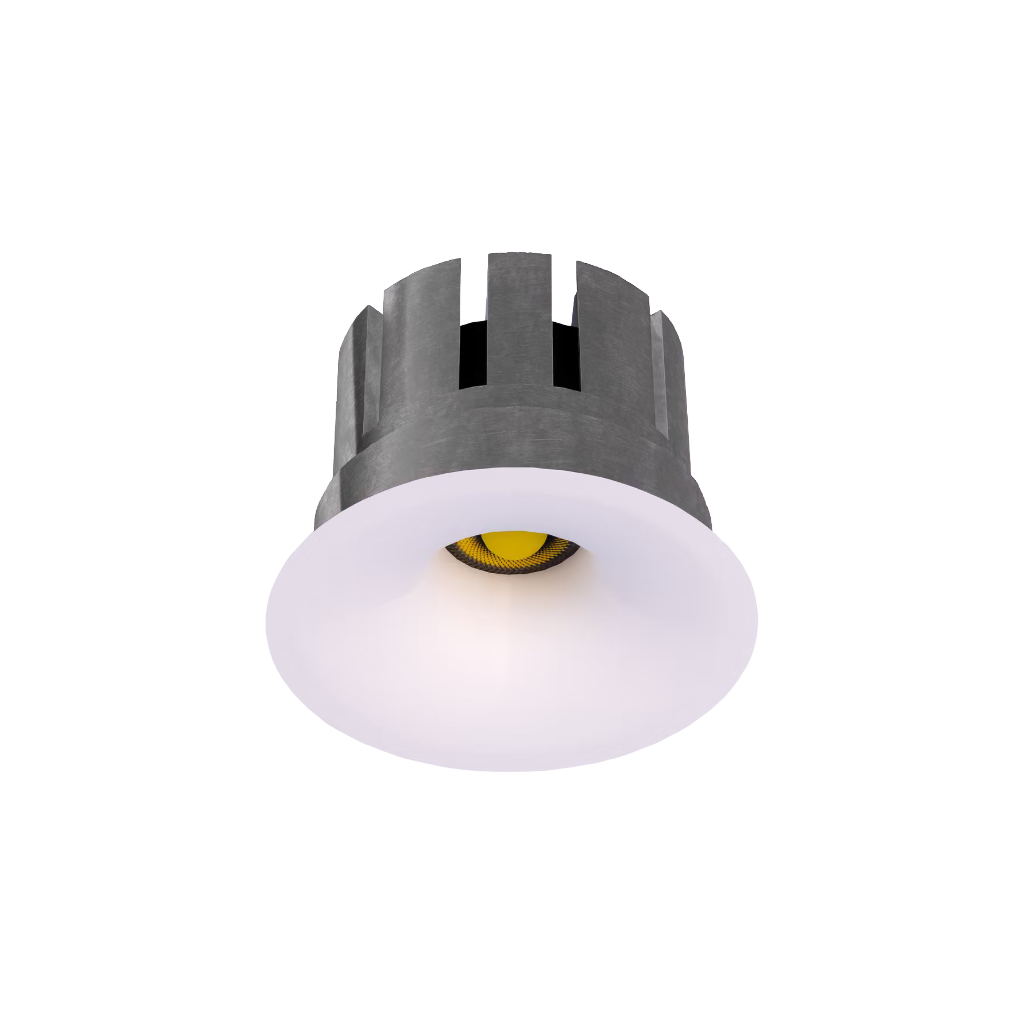

C&C Lighting Camber recessed COB LED downlight, product photo with dimension guide

Camber Recessed COB LED Downlight Series

The C&C Camber is a recessed COB LED downlight with a deeply curved, flared trim. The reflector sweeps from a wide rim down to a small, recessed light opening, so the source stays out of sight and glare stays low. Six sizes from 2" to 4" let you use one look through a whole project.

2" to 4", six sizes 7W to 20W 15° / 24° / 36° / 55° Ra90 / Ra95 2700K to 6000K Dimmable 50,000 hour life
Download Spec Sheet

Highlighted Features

Curved Flared Trim
A smooth, deep reflector that keeps the source recessed and glare low.
Six Sizes
2", 2.5", 3", 3.5" and 4" models, including two 3" outputs.
COB LED Source
A single, smooth source with no dotting on walls or surfaces.
Four Beam Angles
15°, 24°, 36° or 55° for accent, spot or general lighting.
High Color Rendering
Ra90 or Ra95 for true colors in homes, retail and galleries.
2700K to 6000K
Warm to cool color temperatures to suit the room.
Dimmable
Compatible with dimming systems. Please confirm the dimmer for your project.
Spring-Clip Mounting
A quick, secure fit in the ceiling with a slotted heat-sink body.

How to Order

Camber is offered in six models and a choice of trim finishes. Choose the model for your size and output, then select the trim finish. To place an order, contact us at info@candclight.com with your project name, model numbers, finish codes, beam angle, color temperature, CRI, quantities and delivery location.

C&C-LP-15C1032

2 Inch
C&C-LP-2C1032

2.5 Inch
C&C-LP-3C1032

3 Inch, 10W
C&C-LP-3BC1032

3 Inch, 13W
C&C-LP-35C1032

3.5 Inch
C&C-LP-4C1032

4 Inch
Model
LP-15C1032 2", 7W
LP-2C1032 2.5", 9W
LP-3C1032 3", 10W
LP-3BC1032 3", 13W
LP-35C1032 3.5", 18W
LP-4C1032 4", 20W
Optics and Color
15° Beam angle
24° Beam angle
36° Beam angle
55° Beam angle
Ra90 Color rendering
Ra95 Color rendering
2700-6000K Color temperature
Input Voltage
100-130V AC input
100-277V AC input
100-347V Optional
Trim Finish
RG Rose Gold
CHG Charming Gold
CPG Champagne Gold
LG Luxury Gold
LB Lake Blue
SDS Sand Silver
SL Silver
SSL Shiny Silver
SG Space Gray
AB Agate Black
GR Gray
STG Stone Gray
MW Moon White
MB Moon Black
MWR Moon White Ribbed
MBR Moon Black Ribbed

For full technical specifications and sizing diagrams, download the product spec sheet.

Download Spec Sheet

More About the Camber Recessed COB LED Downlight Series

Specifications at a Glance

2 Inch 2.5 Inch 3 Inch 3 Inch 3.5 Inch 4 Inch
Model LP-15C1032 LP-2C1032 LP-3C1032 LP-3BC1032 LP-35C1032 LP-4C1032
Power 7W 9W 10W 13W 18W 20W
Cutout diameter 55mm (2 1/5") 65mm (2 5/8") 75mm (3") 75mm (3") 85mm (3 3/8") 95mm (3 3/4")
Trim diameter 62mm (2.5") 71mm (2 3/4") 82mm (3 1/4") 82mm (3 1/4") 93mm (3 5/8") 104mm (4")
Height 56mm (2 1/5") 59mm (2 1/3") 50mm (2") 63mm (2.5") 71mm (2 3/4") 79mm (3")
Light source COB LED
Input voltage 100-130V, 100-277V, 100-347V (optional)
Efficacy 90 lm/W
Beam angle 15° / 24° / 36° / 55°
CRI Ra90 / Ra95
Color temperature 2700K to 6000K
Lifespan 50,000 hours
Dimmable Yes
Mounting Recessed, spring clip
Design and Finish

The name Camber describes a smooth, continuous curve. The trim flares from a wide rim into a deep, funnel-shaped reflector, so the light source sits low and out of sight. From below, Camber reads as a clean ring in the ceiling.

Trims are offered in sixteen finishes: Rose Gold (RG), Charming Gold (CHG), Champagne Gold (CPG), Luxury Gold (LG), Lake Blue (LB), Sand Silver (SDS), Silver (SL), Shiny Silver (SSL), Space Gray (SG), Agate Black (AB), Gray (GR), Stone Gray (STG), Moon White (MW), Moon Black (MB), and ribbed versions of Moon White (MWR) and Moon Black (MBR). The ribbed reflector adds stepped rings that soften the look of the opening.

Optics, Color and Dimming

Camber uses a COB LED source with an efficacy of 90 lm/W. Choose a 15° beam for accent lighting and artwork, 24° or 36° for focused task and display lighting, or 55° for general light over counters and floors. Color rendering is Ra90 or Ra95, and color temperature ranges from 2700K to 6000K.

All models are dimmable and rated for 50,000 hours. Dimming performance depends on the dimmer, so please confirm compatibility before ordering. Please contact us for lumen output by beam angle and color temperature.

Mounting and Installation

Camber mounts with spring clips and a slotted heat-sink body. Refer to the sizing diagrams on the spec sheet for the cutout size of each model. Input voltage is 100-130V or 100-277V, with 100-347V available as an option.

Installation should be completed by a qualified electrician in accordance with local electrical codes. Please contact us for driver details, housing options, ceiling depth and the ratings that apply to the model you need.

Ratings and Certifications

The Camber spec sheet carries marks for ETL (Intertek), ENERGY STAR, IC, FCC, dimmable, 90+ CRI, IC rated, airtight and wet location. Ratings can vary by model, trim and voltage, so please contact us at info@candclight.com for the certificate and the exact rating of the model you plan to use.

Where to Use It
  • Kitchens and living rooms: the larger sizes give even, low-glare light over counters and seating.
  • Hallways, shelves and bathrooms: the smaller sizes suit tight spaces and accent lighting.
  • Retail floors: narrow beams pick out merchandise and displays.
  • Galleries and showrooms: Ra95 color rendering shows art and materials as they are.
  • Hotels and hospitality: a consistent, refined downlight for corridors, lobbies and guest rooms.
Frequently Asked Questions

What sizes does Camber come in?
Six models: 2" (7W), 2.5" (9W), 3" (10W and 13W), 3.5" (18W) and 4" (20W).

What trim finishes are available?
Sixteen finishes, including gold, silver, gray, black, white and blue tones. See the finish codes in the How to Order section.

What beam angles are available?
15°, 24°, 36° and 55°.

What color temperatures and CRI are available?
2700K to 6000K, with Ra90 or Ra95 color rendering.

What voltage does it use?
100-130V or 100-277V, with 100-347V available as an option.

Is it dimmable?
Yes. Dimming performance depends on the dimmer, so please confirm compatibility with your specific dimmer.

What cutout size do I need?
Cutout sizes are listed in the Specifications at a Glance table and shown in the sizing diagrams on the spec sheet.

Is it certified and rated?
The spec sheet carries marks for ETL (Intertek), ENERGY STAR, IC, FCC, IC rated, airtight and wet location. Please contact us for the certificate and the exact rating for your model.
