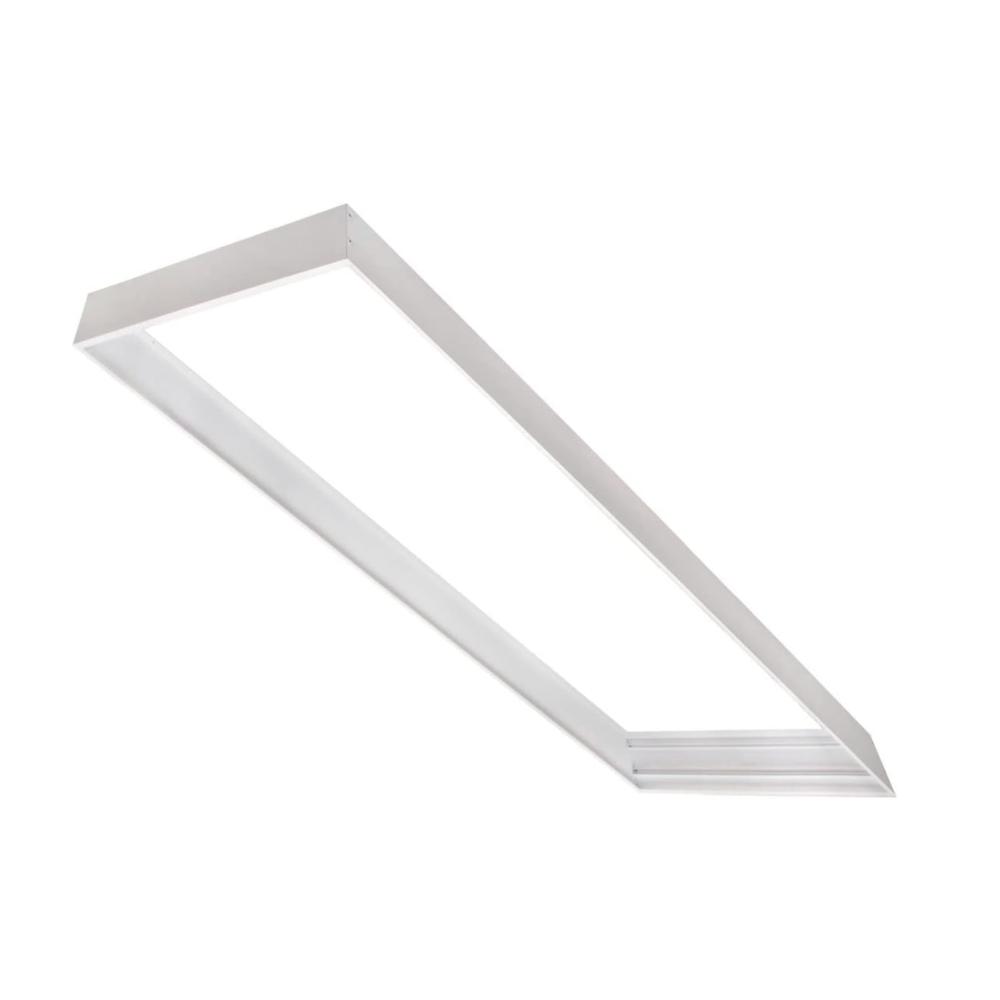

Surface Mounting Frame — SMF14 / SMF22 / SMF24

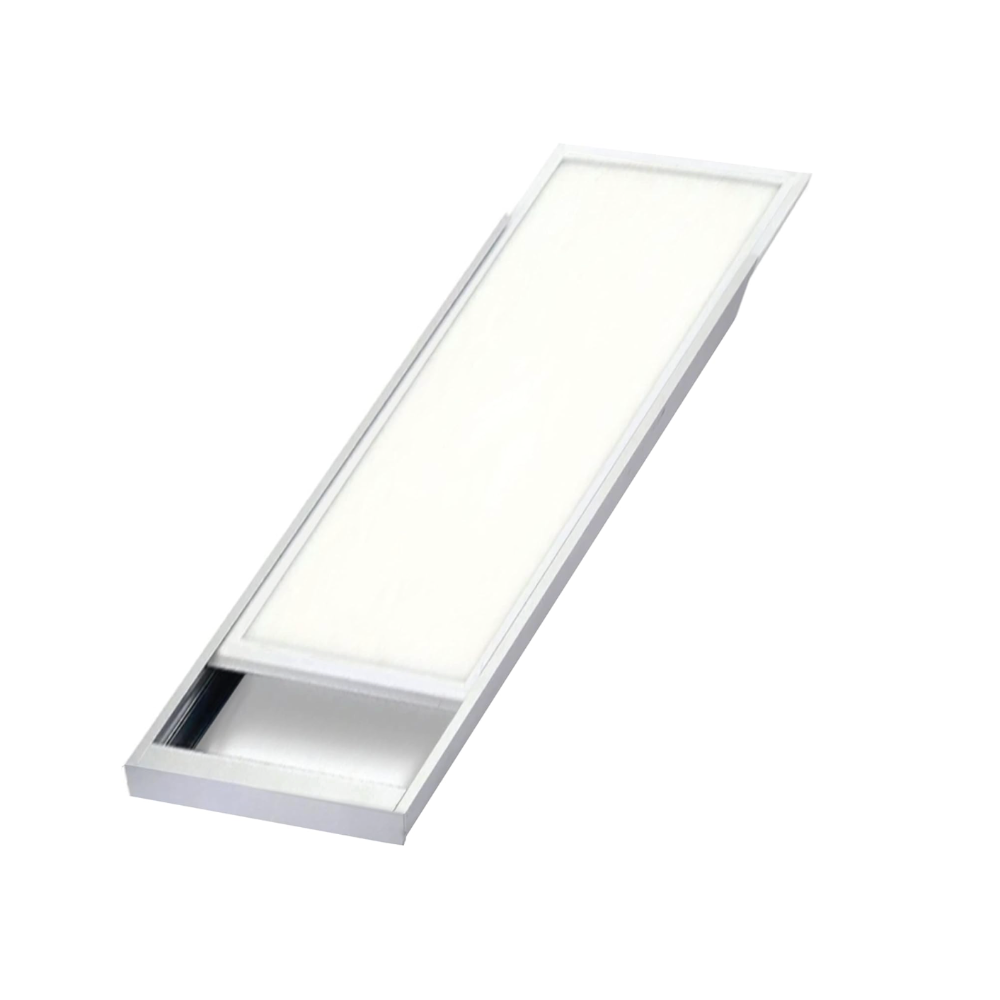

A surface mount kit for LED flat panels where recessed installation is not possible. Available in 1x4, 2x2, and 2x4 configurations with an ultra low-profile aluminum frame and white powder-coated finish — compatible with insulated and non-insulated sheetrock ceilings.

1x4 / 2x2 / 2x4 18-Gauge Aluminum 2.13" Depth White Powder Coat Made in USA
Download Spec Sheet

Highlighted Features

Fixture Type
Surface mount accessory kit for LED flat panels in spaces where recessed installation is not possible. Available in three panel configurations: SMF14 (1x4), SMF22 (2x2), and SMF24 (2x4). Provides a clean, architectural finish on any modern ceiling surface.
Construction
Fabricated from durable 18-gauge aluminum (1.7mm / 0.067" thick) with a clean white powder-coated finish. Ultra low-profile frame at 2.13" (54mm) depth across all three configurations.
Configurations
Three size options to match standard LED flat panel formats: SMF14 at 48" x 12" (1219mm x 300mm), SMF22 at 24" x 24" (609mm x 609mm), and SMF24 at 48" x 24" (1219mm x 609mm). All share a uniform 2.13" (54mm) depth.
Weight
Lightweight across all sizes: SMF14 at 2.6 lbs (1.18kg), SMF22 at 1.9 lbs (0.86kg), and SMF24 at 3.0 lbs (1.36kg). Easy to handle and position during installation.
Installation
Designed for quick and easy field installation on both insulated and non-insulated sheetrock ceilings. Sleek low-profile design minimizes ceiling projection for a flush, integrated appearance.
Compatibility
Compatible with C&C Lighting LED flat panels, with or without emergency backup options. Supports standard panel sizes across the 1x4, 2x2, and 2x4 form factors.
Origin
Made in the USA.
