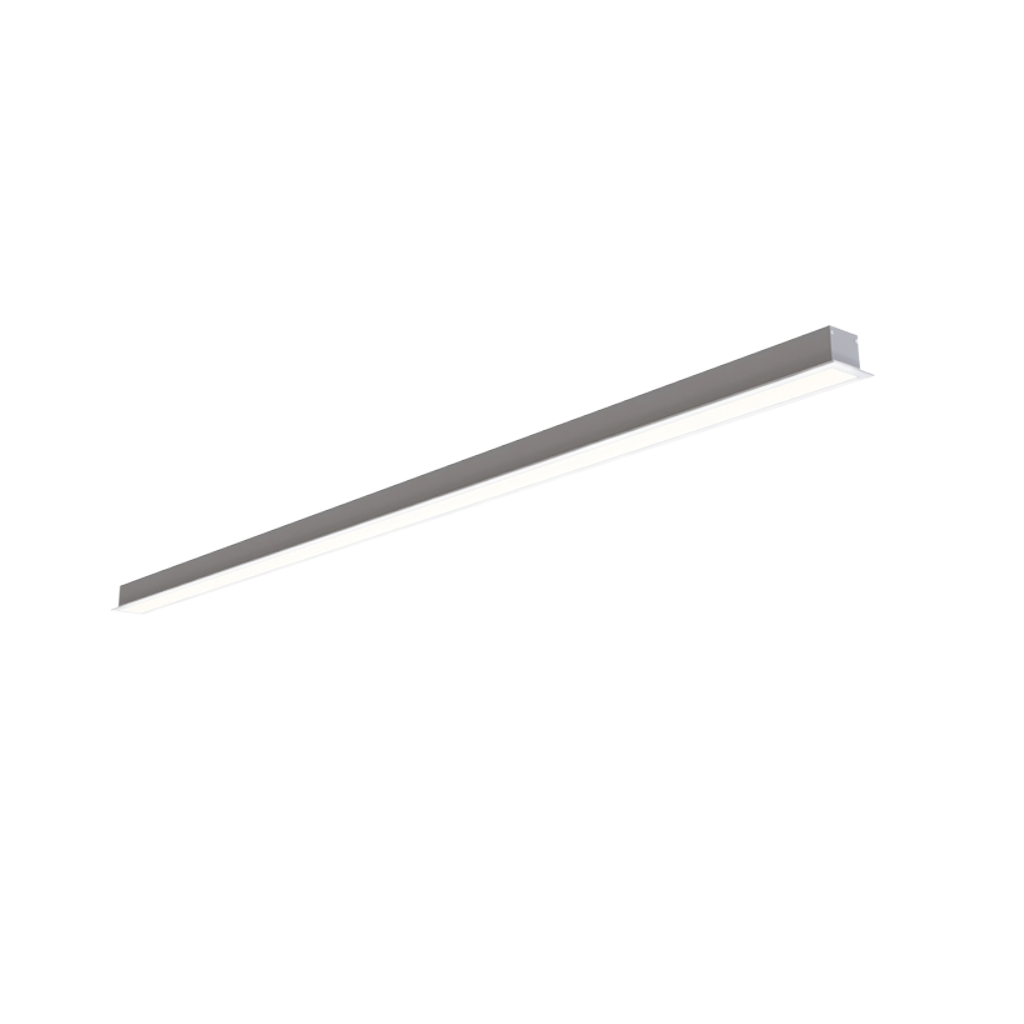

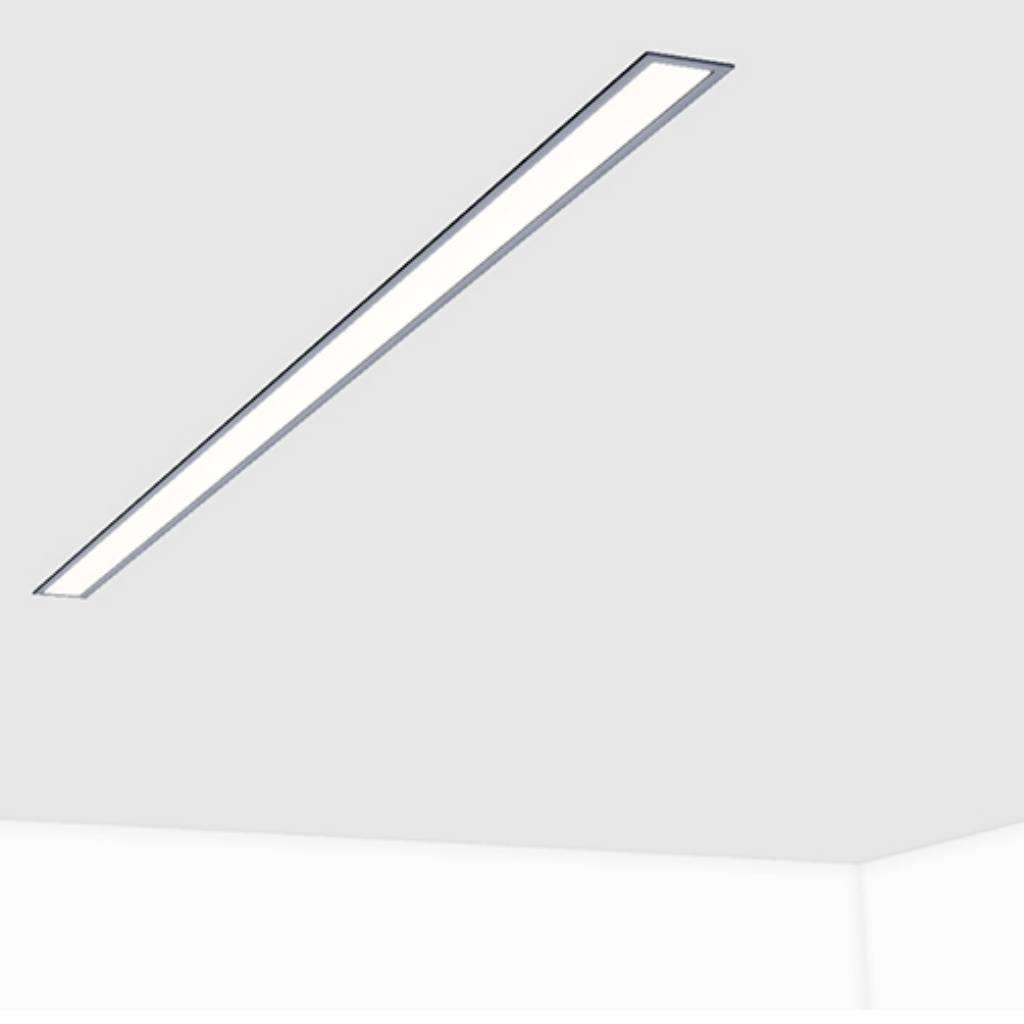

Custom Recessed Linear light
Description:
Deliver seamless, modern lines of light tailored to your space. Our Custom Recessed Linear system is built to order for commercial interiors—offices, retail, hospitality, and public spaces—combining architectural minimalism with high output, low glare, and serviceable components.
Why it works:
| Made to measure: | Continuous runs, exact lengths, mitered corners, and patterns (L/T/X). |
| Optical control: | Diffuse, micro-prismatic, or low-glare baffle options; multiple beam angles for wall-wash or corridor. |
| Performance: | High efficacy LED boards, CRI 90+, tight color consistency (≤3 SDCM), stable output. |
| Comfort: | UGR-conscious optics and shielding; flicker-safe driver pairings. |
| Serviceable: | Remote or integral drivers; field-accessible gear for maintenance. |
| Controls-ready: | 0–10 V, TRIAC/ELV (select), DALI, CASAMBI/BT, or PoE gateways on request |
Build options:

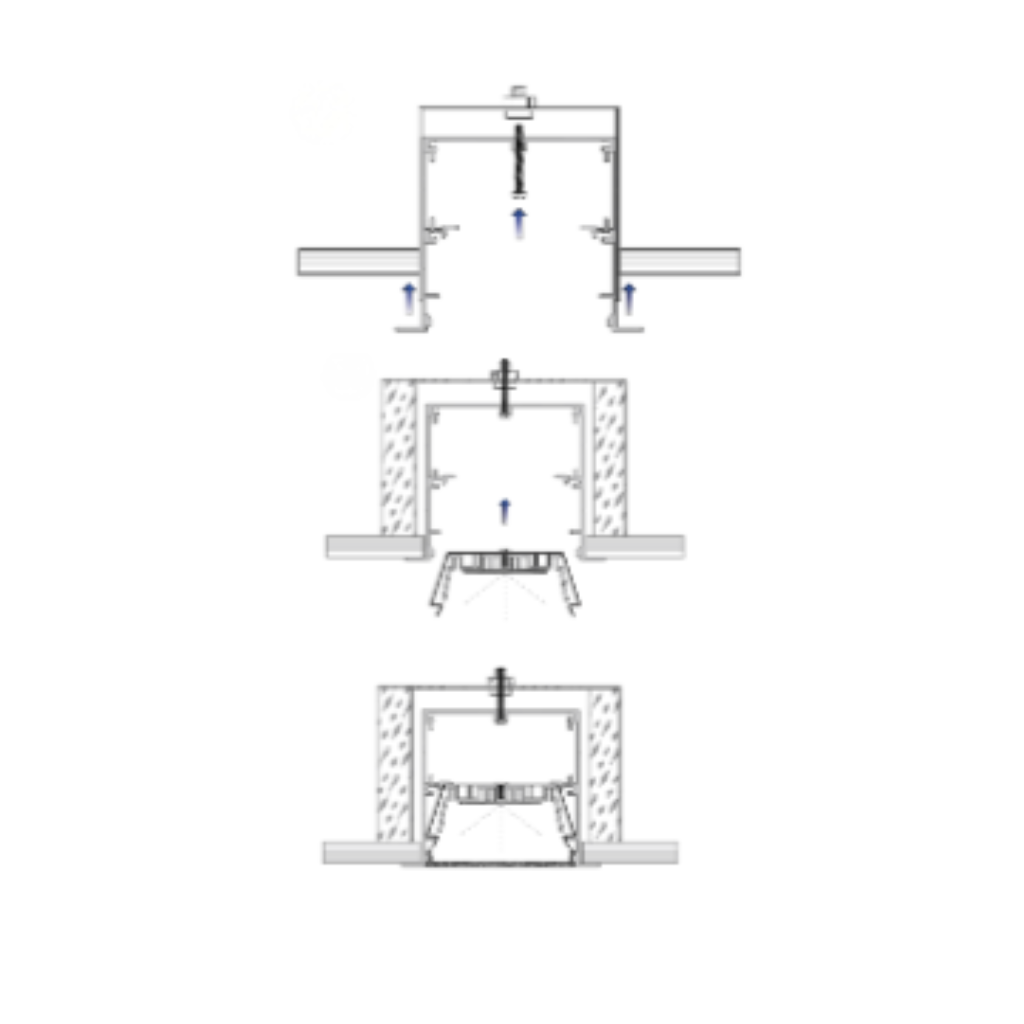

| Profiles: | Trimless (mud-in) or flanged; shallow and deep housings. |
| CCT: | 2700K / 3000K / 3500K / 4000K / 5000K; tunable white available. |
| Output levels: | Multiple lumen packages (low/standard/high) to meet target lux. |
| Distributions: | General diffuse, asymmetric wall-wash, narrow/wide batwing. |
| Finish: | Standard matte white/black; custom RAL on request. |
| Power: | 24/48 V remote driver or 120–347 V integral driver (location dependent). |
| Dimming: | 0–10 V standard; DALI, phase, or wireless by spec. |
| Accessories: | Emergency backup, joiner kits, corner modules, dust lens, regress baffle. |
Applications
Open offices, meeting rooms, corridors, retail aisles, feature ceilings, gallery walls, and reception areas.
Typical performance
| Efficacy: | up to 110–130 lm/W (package dependent) |
| CRI: | 90+ (95+ optional) |
| MacAdam: | ≤3 SDCM |
| L70: | 50,000–100,000 h (at 25–40°C) |
| Listings: | cETLus/CSA, IC/non-IC options, damp location (select models) |
Specifier notes
| Provide run lengths, ceiling type (gwb, t-bar), mounting depth, target illuminance, and control protocol. |
| We will return a shop drawing + load schedule and confirm joints, corners, and driver locations before release. |
Ordering guide
L-RCL — Trimless — 3.5" — 3500K — Std Output — Diffuse — 0–10 V — 120–277 V — Matte White — Remote Driver
Due to the custom nature of this product, please get in touch with us to request the Specification
