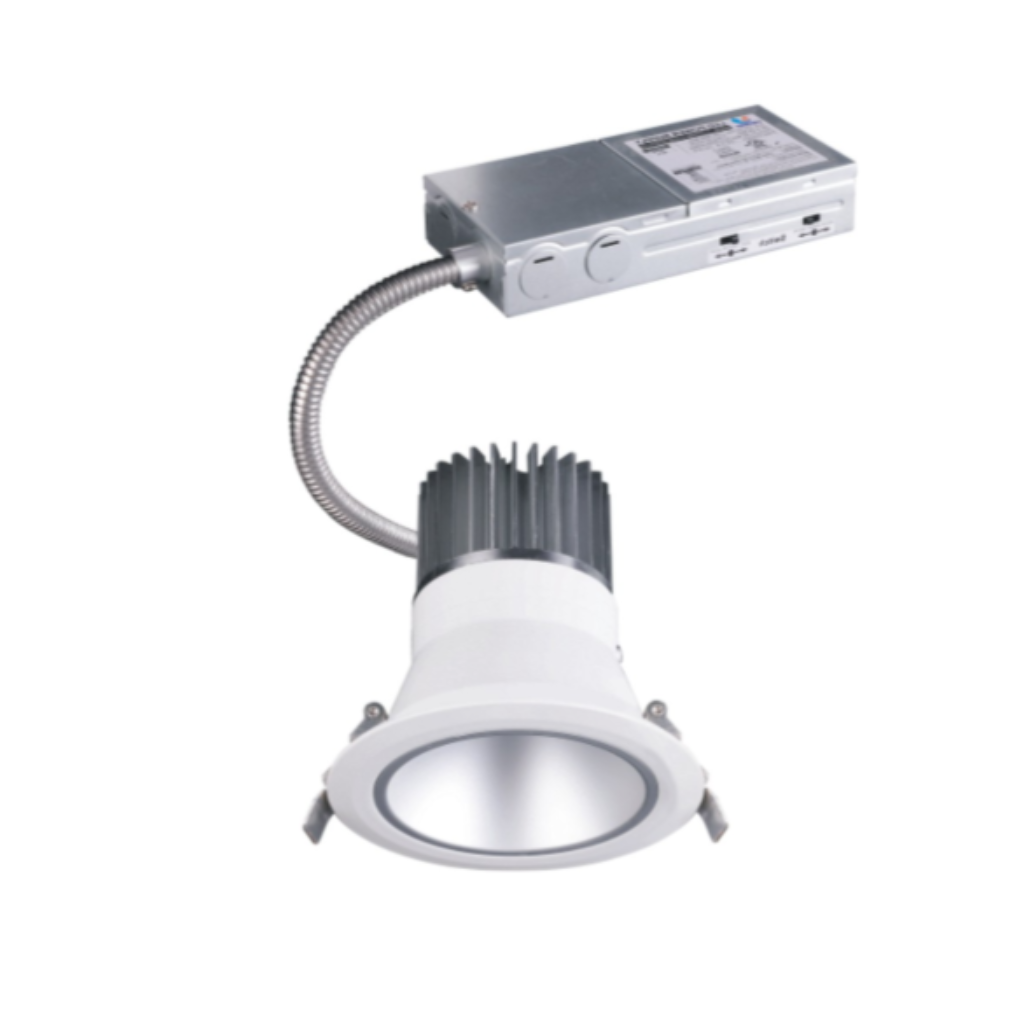

The Commercial LED Downlight Series is engineered to deliver high-output performance, long-lasting reliability, and energy-efficient illumination for large-scale commercial, institutional, and multi-residential applications. Built with advanced SMD LED technology, these downlights provide powerful, uniform lighting with high efficacy (90–100 lm/W) and CRI 80+ or 90+ for exceptional visual clarity.

Available in multiple apertures and wattage packages, this series offers precise lumen control to suit a wide range of ceiling heights and lighting requirements—from offices and retail environments to corridors, lobbies, and public buildings. Select models offer 5CCT colour-selectable tuning (3500K–5000K) for maximum flexibility during installation.

With broad voltage compatibility (120V / 277V / 347V) and 0–10V or Triac dimming, these downlights integrate seamlessly with commercial lighting controls and building management systems. Durable trim options in White, Black, or Brushed Nickel provide a clean, modern look that complements any architectural design.

Designed for demanding environments, each fixture is rated for 50,000 hours of maintenance-free operation, reducing energy and service costs over the life of the building.

Key Features

• High-output commercial-grade SMD LED technology

• Multiple wattage configurations: 18W / 28W / 40W / 48W

• High efficacy: 90–100 lm/W

• CRI Ra80 / Ra90 for superior light quality

• 60° beam angle for wide, consistent coverage

• Color options: 3000K / 3500K / 4000K / 5000K or 5CCT selectable

• Dimming: 0–10V or Triac (model dependent)

• Wide voltage range: 100–130V / 100–277V / 100–347V

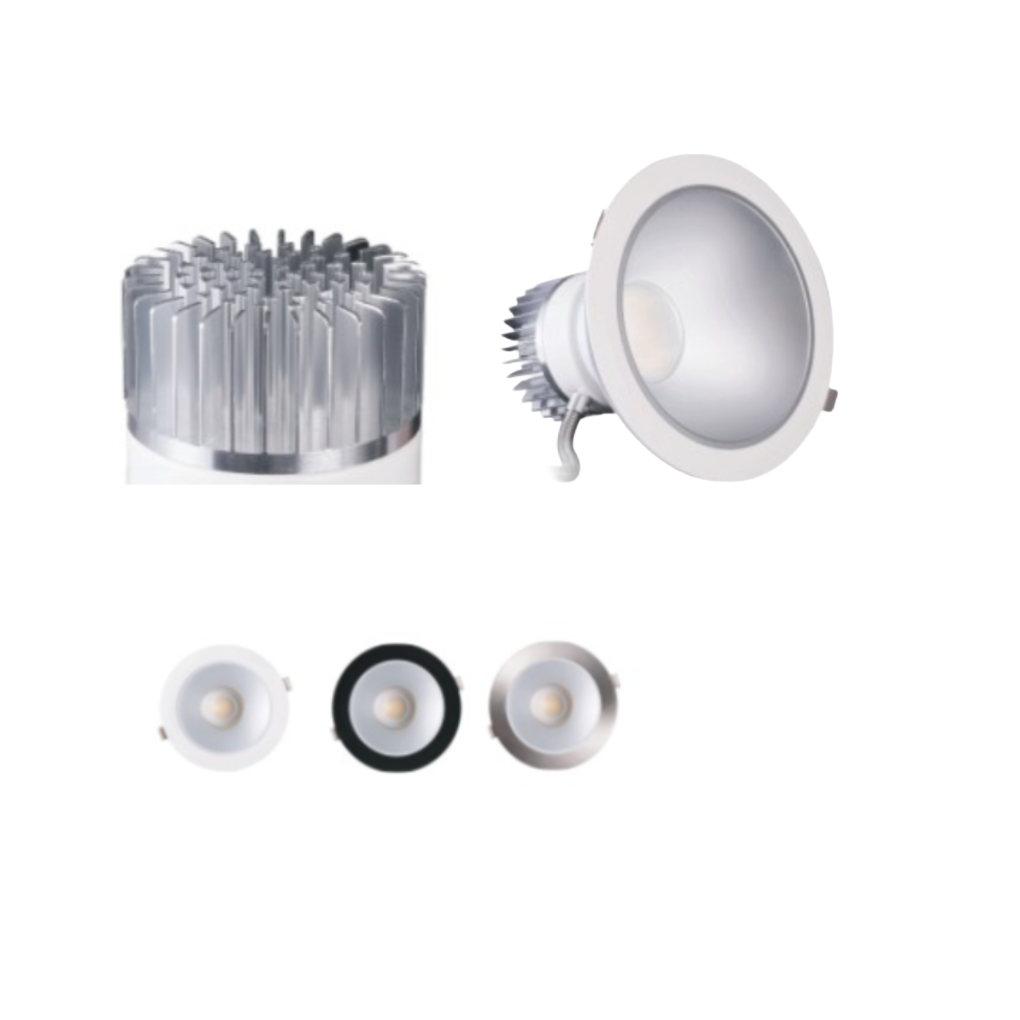

• Modern trim finishes: White (W), Black (B), Brushed Nickel (BN)

• Long lifespan: 50,000 hours rated

Applications

• Office buildings & corporate spaces

• Retail stores & shopping centres

• Condominiums and multi-unit residences

• Schools, hospitals, and institutional buildings

• Hotel corridors, lobbies, and guest areas

• Commercial renovations and new construction

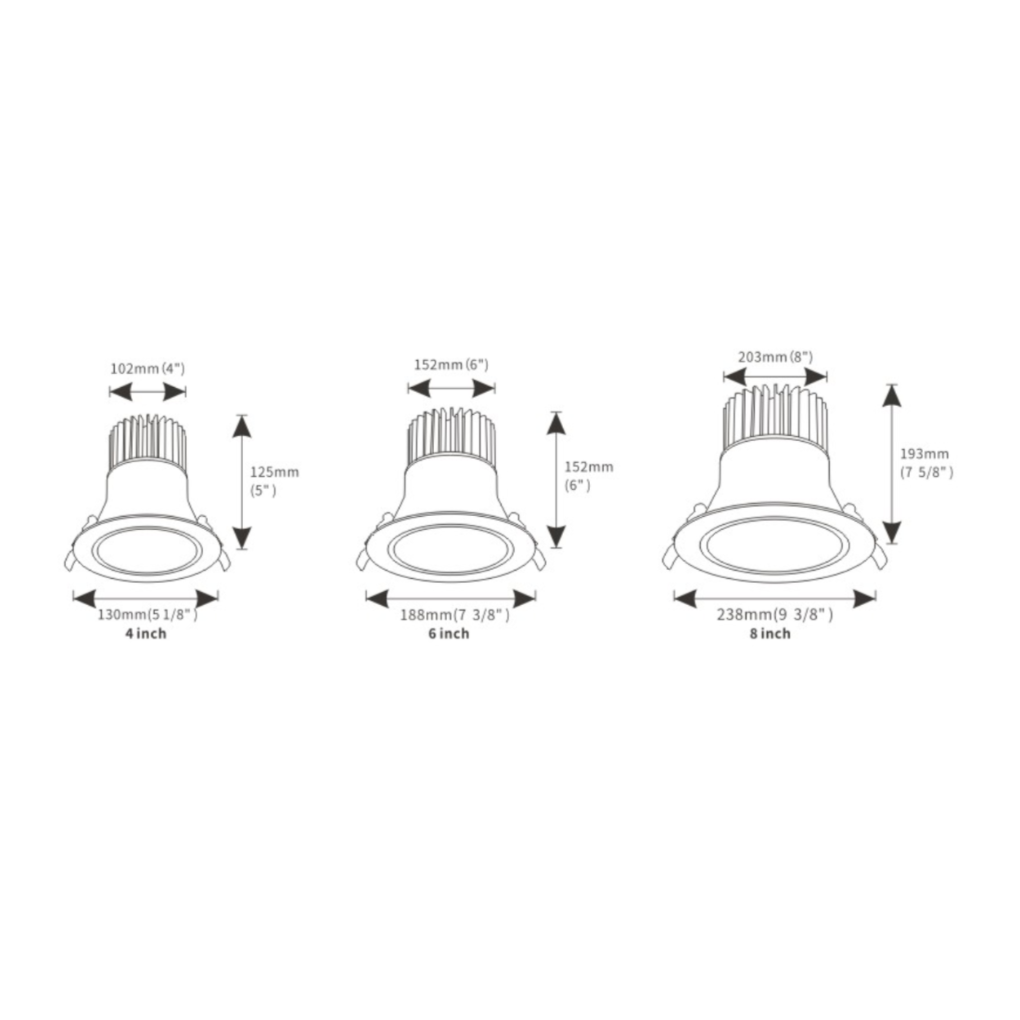

Technical Data 6'' Commercial Downlight
