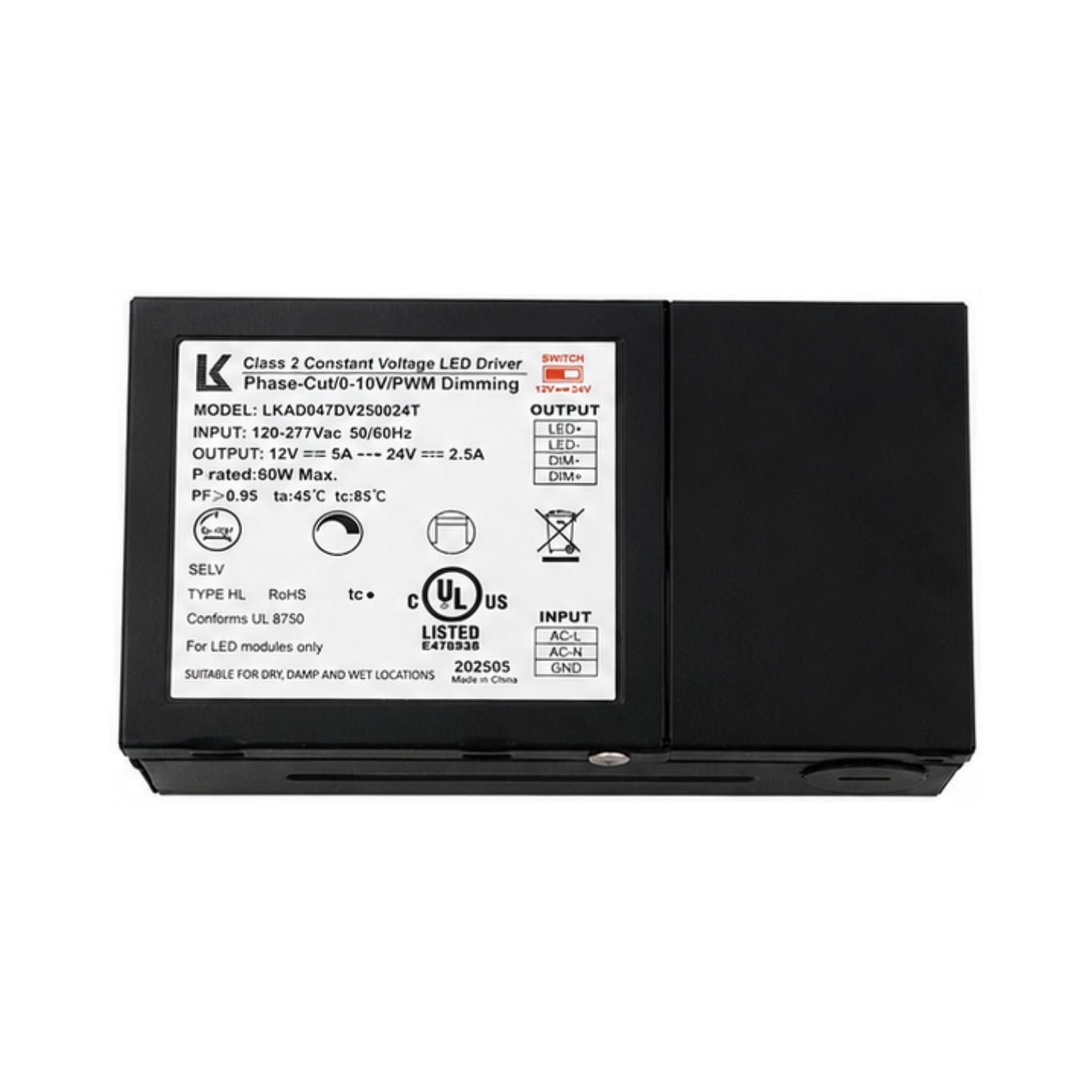

C&C Lighting 60W Class 2 Constant Voltage LED Driver model LKAD047DV250024T — front label view showing 12V/24V switchable output, 120-277VAC 50/60Hz input, Phase-Cut/0-10V/PWM 5-in-1 dimming, cULus Listed E478938, UL 8750, RoHS compliant, SELV rated, suitable for dry, damp, and wet locations

5-in-1 Dimming LED Driver

A Class 2 Constant Voltage LED Driver series supporting five dimming protocols — Triac, 0-10V, 1-10V, PWM, and VR — ideal for commercial, architectural, hospitality, retail, and residential low-voltage LED lighting applications.

60W / 100W / 200W / 300W 12V & 24V DC Output 120–277VAC Input 5-in-1 Dimming cULus Listed
Download Spec Sheet

Highlighted Features

Driver Type
Class 2 Constant Voltage LED Driver designed for professional low-voltage LED lighting systems including linear lighting, LED tape, cove lighting, under-cabinet lighting, signage, display lighting, and custom architectural installations.
Input Voltage
Universal input voltage of 120–277VAC, 50/60Hz for compatibility across residential and commercial electrical systems throughout North America and internationally.
Output Configurations
Available in 60W, 100W, 200W, and 300W output power options supporting both 12VDC and 24VDC lighting applications. Models: LKAD047DV250024T (60W), LKAD089V-T-100V-DIM (100W), LKAD220DV-T-200W-DIM (200W), and LKAD360DVC39024T (300W).
5-in-1 Dimming Compatibility
Supports five dimming protocols in a single driver: Triac (Phase-Cut), 0-10V, 1-10V, PWM, and VR dimming systems. Provides flexible integration with virtually any lighting control system used in commercial or residential projects.
Installation
Compact remote-driver design suitable for concealed ceiling spaces, millwork, cabinetry, coves, and architectural lighting installations. Rated for dry, damp, and wet locations for broad installation flexibility.
Safety and Certification
cULus Listed and conforms to UL 8750 standards for LED equipment safety and performance compliance. RoHS compliant. SELV rated. Suitable for use across Canada and the United States.
Housing Design
Durable enclosed matte black housing engineered for thermal management, stable operation, and long-term reliability in professional lighting environments. Ambient temperature rated to 45°C, case temperature to 85°C.
Power Factor
Power factor greater than 0.95 across all models, ensuring efficient energy use and compatibility with commercial building energy standards and controls.
Warranty
Backed by a 5-year limited warranty for dependable performance in commercial and residential applications.
Applications
Designed for commercial, architectural, retail, hospitality, and residential low-voltage LED lighting. Ideal for LED tape lighting systems, cove lighting, under-cabinet lighting, display lighting, signage, and custom architectural lighting projects.
Voltage Switching
All models feature a 12V/24V switchable output, allowing a single driver SKU to serve both 12VDC and 24VDC LED systems. The output voltage is selected via an onboard switch prior to installation.
Manufacturer
Designed and distributed by C&C Lighting, based in Concord, Ontario, Canada. Contact: info@candclight.com | 1-905-856-0903. Available for commercial and residential projects across Canada and the US.
