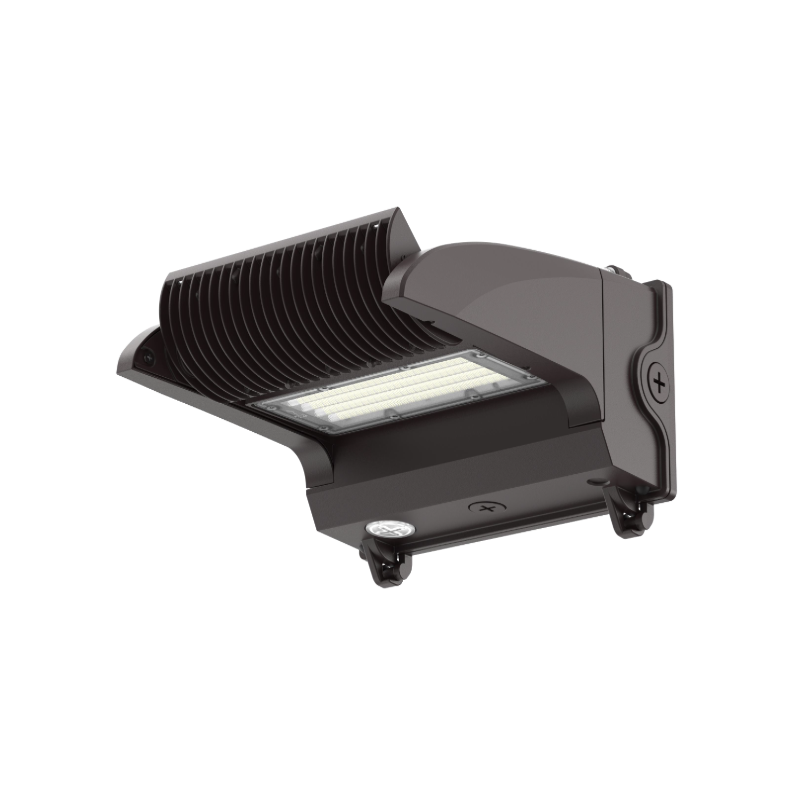

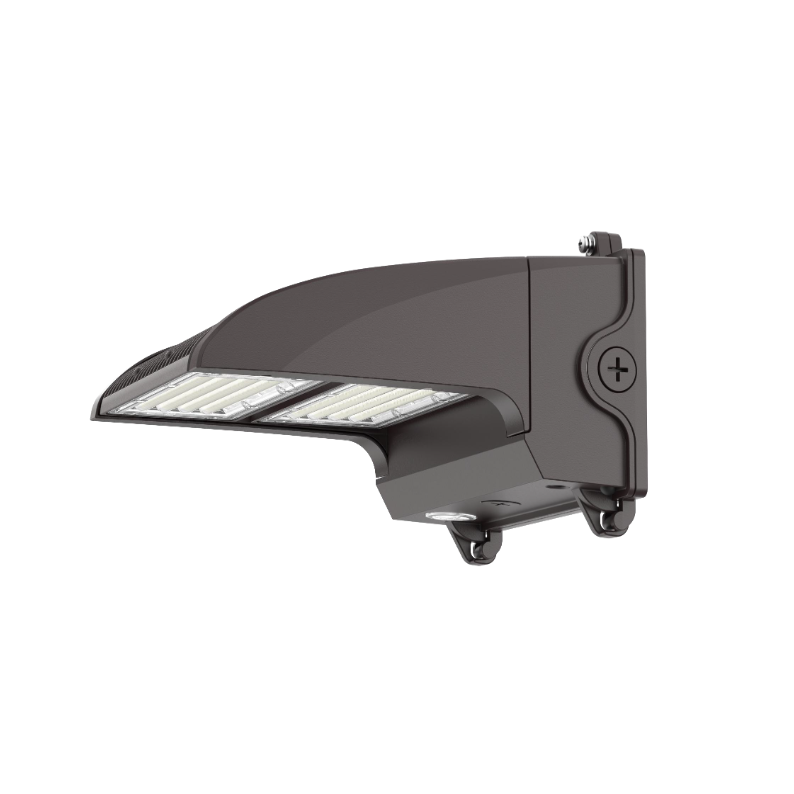

LED Rotating Wall Pack – WP32 Series
Product Overview:
Versatile, energy-efficient, and built for performance.
The WP32 Series by C&C Lighting delivers high-output illumination with selectable wattage and color temperature, making it ideal for commercial, industrial, and perimeter lighting applications. Its IP65-rated construction ensures reliable operation in any weather condition, while optional sensors and emergency backup features provide added flexibility.
Key Features & Benefit:

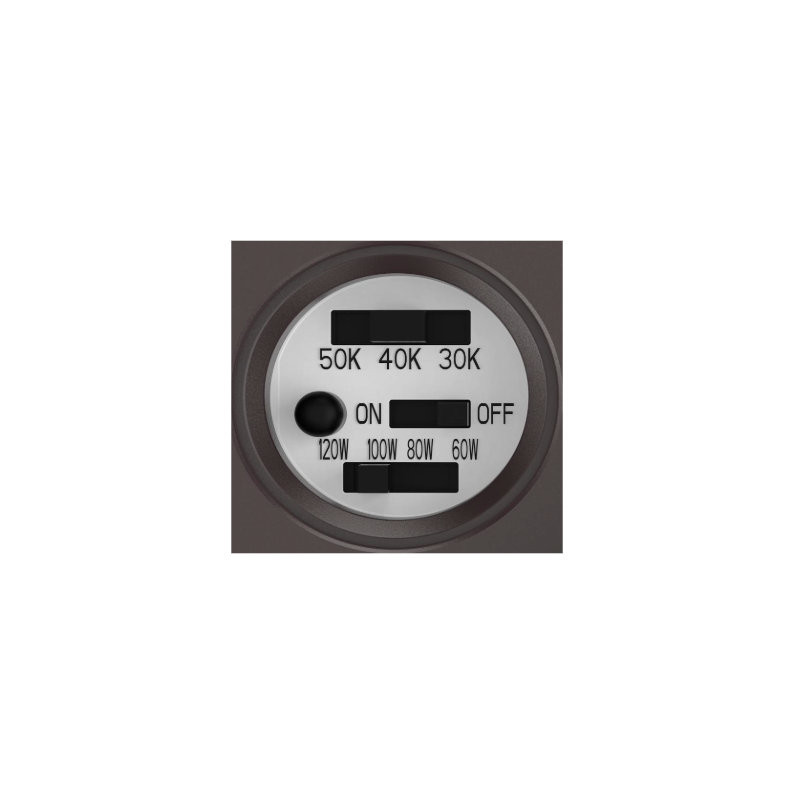

| 4-Watt Selectable: |
Choose from 120W / 100W / 80W / 60W (or 80W / 60W / 50W / 40W models). |
| 3CCT Adjustable: |
Easily switch between 3000K, 4000K, or 5000K color temperatures. |
| High Efficiency: |
Up to 150 lm/W with CRI > 80 for accurate color rendering. |
| Dimmable: |
Integrated 0–10 V dimming driver for precise light control. |
| Durable Build: |
Heavy-duty die-cast aluminum housing with polycarbonate lens. |
| Outdoor Rated: |
IP65 waterproof with 6 kV surge protection. |
|
Long Life: |
Rated L70 @ 50,000 hours for maintenance-free operation. |
| Operating Temperature: |
−40 °C to +45 °C (−40 °F to 113 °F). |
Options & Accessories :
Customize your wall pack with optional smart sensors and emergency power modules:
| Microwave Motion Sensor: |
Standard or Bluetooth-enabled. |
| Photocell: |
Auto on/off function (factory-default ON) |
| Emergency Backup Driver: |
8 W emergency illumination (Billda YM08D-300A) |
Specifications :
| Model: |
WP32D-9-80Z-AD4C3 |
WP32D-9-120Z-AD4C3 |
| Lumens: |
12,000 lm @ 80 W |
18,000 lm @ 120 W |
| Voltage: |
AC 120–277 V / 120–347 V |
AC 120–277 V / 120–347 V |
| CCT Range: |
3000K / 4000K / 5000K |
3000K / 4000K / 5000K |
| Beam Type: |
Type III |
Type III |
| Mounting: |
Wall Mount |
Wall Mount |
Applications :
| • Building Exteriors |
| • Warehouses and Loading Docks |
| • Walkways, Perimeters, and Parking Areas |
| • Security and Landscape Lighting |
>Technical Data for LED Wall Pack Light 80W
